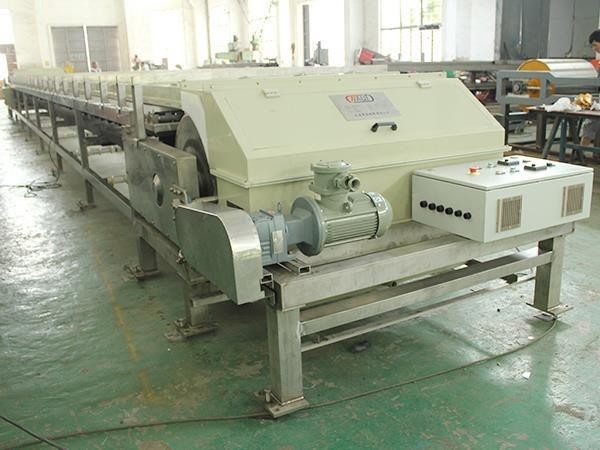

Solidified Conveyor Belt Flaking Large Capacity Single System

Naut high capacity single belt flaking systems, by overflow weir feeder, the melt water loaded on the constantly moving steel belts, on effects of cooling water spray above or below the belt, melt is cooled and solidified in the process of conveying and then become flake. According to different material feature and capacity requirement, you can choose single belt cooling system, double belt presses system, large capacity cooling system.

Material:

SUS304 stainless steel, Carbon steel, Zinc coated carbon steel, Breaker machine, and other spare parts.

Characteristic:

High corrosion, easy to clean ,long usage time, flaking machine, single steel belt flake, chemical flake, high strength, high capacity, high quality, Customized, low price.

Structure:

Single steel belt flaking systems: Steel belt cooler machine, Steel belt, Control system, and other machine parts, Custom made parts.

Principle:

For material heating, cooling, Solidification, broken. According to the molten product's viscosity range, via special over flow weir feeder,the molten product is loaded on the below constantly moving belts.

Machining:

Raw material-Heating and melting-Steel belt cooler-Exhaust air-Water coolecting tank cooling- Blanking-Broken- Packing

Product Usage:

For material heating, cooling, Solidification, broken. For flaker machine, chemical flake, flaking system for chemical industry. For Epoxy, Polyster resin, Phenolic resin, Acrylic resin, Hydrocarbon resin,and other all kinds of resin.

-- The belt cooling system has following characteristic. It uses belt's heat conductivity and water spray cooling to quickly solidified the melt. As the belt is reverse bending on the discharge end so the solidified products can separate from steel belt naturally. There's little broken dust when discharging and the flakes is protected well.

-- The belt cooling solidifying system is suitable for variou flake products whose melt point or soft point is below 300℃ and also who has crystallization characteristic.
