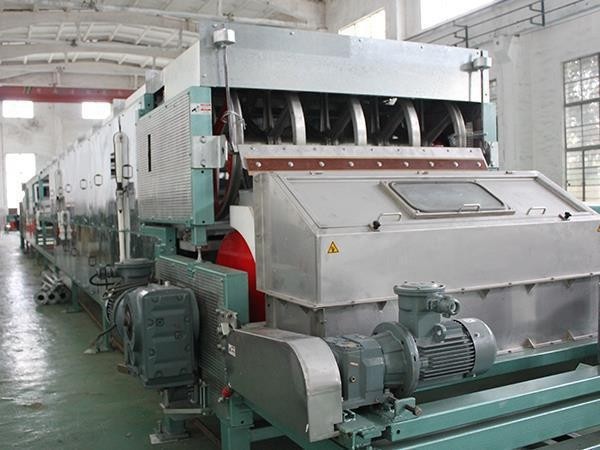

Melting Resin Conveyor Belt Flaking Double Cooler High Capacity

Naut high capacity Double belt flaking systems, by overflow weir feeder, the melt water loaded on the constantly moving steel belts, on effects of cooling water spray above or below the belt, melt is cooled and solidified in the process of conveying and then become flake. According to different material feature and capacity requirement, you can choose double belt flaking system, large capacity cooling system, and double belt flaking system includes flat flaking machine, Bow flaking machine and tilting flaking machine

Material:

SUS304 stainless steel, Carbon steel, Zinc coated carbon steel,and other spare parts.

Characteristic:

The belt cooling system uses belt's heat conductivity and water spray cooling to quickly solidified the melt. As the belt is reverse bending on the discharge end so the solidified products can separate from steel belt naturally. There's little broken dust when discharging and the flakes is protected well. the feeder and belt applies double frequency speed control and can be adjusted according to capacity and material characteristic. Also the system uses multistage temperature control to ensure its stable and reliability in operation.

Structure:

LT-DBC-1.5-20 (Double steel belt flaking systems)

LT-DBC-1.5-25 (Double steel belt flaking systems)

LT-DBC-1.5-30 (Double steel belt flaking systems)

Steel belt cooler machine, Steel belt, Control system, Breaker for Double belt cooler, and other machine parts, Custom made parts.

Principle:

For material heating, cooling, Solidification, broken. According to the molten product's viscosity range, via special over flow weir feeder,the molten product is loaded on the below constantly moving belts.

Machining:

Raw material-Heating and melting-Steel belt cooler-Exhaust air-Water coolecting tank cooling- Blanking-Broken- Packing

Product Usage:

For material heating, cooling, Solidification, broken. For flaker machine, chemical flake, flaking system for chemical industry. For Epoxy, Polyster resin, Phenolic resin, Acrylic resin, Hydrocarbon resin,and other all kinds of resin.

-- The belt cooling system has following characteristic. It uses belt's heat conductivity and water spray cooling to quickly solidified the melt. As the belt is reverse bending on the discharge end so the solidified products can separate from steel belt naturally. There's little broken dust when discharging and the flakes is protected well.the feeder and belt applies double frequency speed control and can be adjusted according to capacity and material characteristic. Also the system uses multistage temperature control to ensure its stable and reliability in operation.
