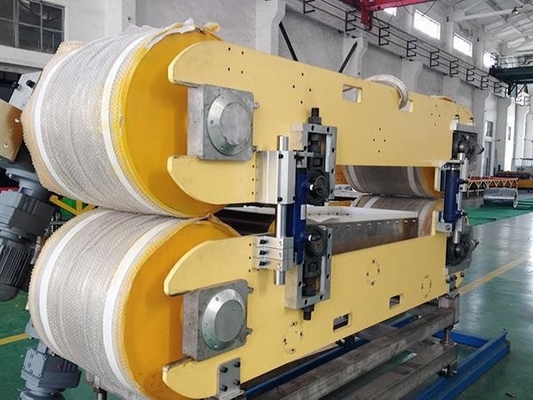

Double Belt Filter Press Hot Pressing High Precision Automatic

In 2014, Naut's first doule belt presses system came out. This presses molding system includes automatic feeding device, hot melt, hot pressing & thickness function, cooling and forming process, then get final desired products. The whole system function is more complicated, high precision, can meet a variety of new composite materials forming.

Material in feeding endconsists of glass fibers. when feeding, material is in uniform thickness and is covered on the lower belt of the double belt presses.

Material:

Carbon steel H-shaped steel and other spare parts.

Zinc rich primer,The appearance color can depend on the customer to provide the metallic paint of the color card.

Characteristic:

Product flatness, smooth and high precision

High temperature resistance up to 450℃

Full automatic continuous production, save more cost.

Excellent corrosion resistance and wear resistance, meet various demands

Structure:

The fixed roller continuous double steel belt press by Naut design and manufacture, the main parts are the hub, pressure roller, heating plate, lifting mechanism, hydraulic system, bearings and steel belt.

Principle:

Sheet thickness depend on the space between the upper belt and lower belt. and the side preventsealing is mainly used to determine the width of the plate.

Then, after thecontrollablepolymerization, solidification and cooling processes, the products is cut into the desired specificationsby the longitudinal and transverse cutting knife.

Machining:

Raw material- film laying device- working table- enter the front tile press(hub temperature of 180℃)- enter the heating area of 300℃- material melting- enter the thicknesss area- into the cooling area- into the sawing line- cutting edge- scrap collecting- diagonalcutting and final products.

Product Usage:

Various multi-level lamination material

Artificial stone block

All kinds of sandwich composite material

Fiber reinforced composite material

Natural fiber composite material

Metal composite material

Buliding composite material

Aluminum plastic fireproof material

Other high, medium, low pressure composite material

Naut double belt presses can working continuous pressure heating and cooling procedure, can be used in the production of glass fiber, carbon fiber composite materials, interwoven compressed glass fiber, carbon fiber mat, fabric or thermoplastic material.
