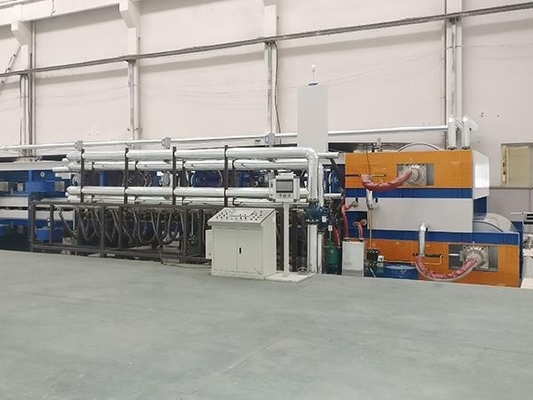

Roller Belt Filter Press H Shaped Steel , Carbon Steel Belt Press Machine

Naut fixed roller double belt press system is equipped with an automatic feeding device, heating part, hot melding composite module, cooling and heating thicknessing module, chilling solidification module, cutting and loading module etc.

The whole system have a complex function and high functional precision, it can meet various newest composite material forming.

Material:

Carbon steel H-shaped steel and other spare parts.

Zinc rich primer,The appearance color can depend on the customer to provide the metallic paint of the color card.

Characteristic:

Large pressure in single line, fixed roller high density and high precision

Intelligent temperature control, each area can control independently

Intelligent pressure system, automatic adjust the pressure according to the product shape

Very flatness, high precision for thickness, zero bubble of composite goods

Over 5 years usage time

The maximum operation temperature is 450℃

Structure:

The fixed roller continuous double steel belt press by Naut design and manufacture, the main parts are the hub, pressure roller, heating plate, lifting mechanism, hydraulic system, bearings and steel belt.

Principle:

The presses molding system includes automatic feeding device, hot pressing&thickness function, cooling and forming process, then get final desired products. The whole system function is more complicated, high precision, can meet a variety of new composite materials forming.

Machining:

Raw material- film laying device- working table- enter the front tile press(hub temperature of 180℃)- enter the heating area of 300℃- material melting- enter the thicknesss area- into the cooling area- into the sawing line- cutting edge- scrap collecting- diagonalcutting and final products.

Product Usage:

Various multi-level lamination material

Artificial stone block

All kinds of sandwich composite material

Fiber reinforced composite material

Natural fiber composite material

Metal composite material

Buliding composite material

Aluminum plastic fireproof material

Other high, medium, low pressure composite material

Naut double belt presses can working continuous pressure heating and cooling procedure, can be used in the production of glass fiber, carbon fiber composite materials, interwoven compressed glass fiber, carbon fiber mat, fabric or thermoplastic material.
