Cooled Melting Sulfur Pastillation Machine Belt , Single Cooling Conveyor Belt

Naut Sulfur pastillator machine takes use of material's low melting point. According to the molten product's viscosity range, Via special over flow weir feeder, the molten product is loaded on the below constantly moving belts, the steel belt is sprayed on the underside with water from nozzles carefully positioned to ensure uniform cooling, on the cooling effects of water spray above or below the belt, the melt is cooled and solidified to flakes when conveying and moving.

Characteristic:

Granulation machine, single steel belt granulation, chemical granulation, high corrosion, high speed, High efficiency, high strength, high capacity, high quality, Customized, low price.

Structure:

Single steel belt sulfur pastillator: Granulation head, Steel belt cooler machine, Steel belt, Control system, and other machine parts, Custom made parts.

Machining:

Raw material-Reaction kettle-Heating and melting-Filter-Granulation head-Steel belt cooler-Exhaust air-Water coolecting tank cooling- Blanking- Granules silo- Packing

Product Usage:

For material processing, heating, cooling, Solidification, for the chemical industry, sulfur pastillator, sulfur pastillator for chemical, chemical sulfur granulation, sulfur granulation machine, sulfur granulation.

-Molten Material Jacket Pump(customer to provide),In a constant and adjustable way, it is conveyed to the granulator head of the steel belt cooler through the heat tracing pipeline.

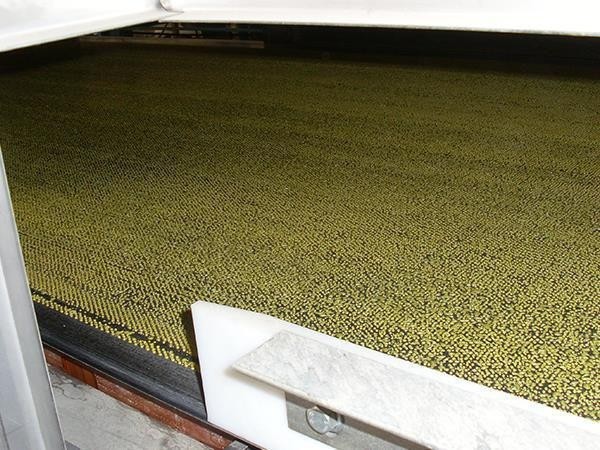

Main parts of granulator head:Core shaft with jacket heat tracing,and there is a groove on it to distribute the material along the axial direction of the roll body.Outside the stator is a continuously rotating outer cylinder, which is drilled with regular pattern holes.When the small hole of the rotating outer cylinder into the stator groove, the material drops onto the steel belt and cools to form semi-circular particles.

The heat released by material cooling and solidification is taken away by steel belt.The whole cooling process is completed on a steel belt with excellent thermal conductivity.Special nozzle ensures uniform distribution of cooling water on the back of steel belt, and produces uniform cooling effect.In this process, the excellent thermal conductivity of the steel belt will also make the material cooled evenly. Clean water, circulating water and re-cooling water can be used in cooling water spraying system.

After solidification, the material particles are scraped off at the feeding end by the feeding scraper and then processed downstream.
