0.2 To 1.5mm Steel Belt Cooling Machine Austenitic Stainless
| Model Number | ASS-1200 |
|---|
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thickness | 0.2mm; 0.3mm; 0.4mm; 0.5mm; 0.6mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm | Width | 600mm;1000mm;1200mm;1500mm;1560mm;2030mm |
|---|---|---|---|
| Brand | Naut | ||
| High Light | 0.2mm Steel Belt Cooling conveyor,1.5mm Steel Belt Cooling conveyor,austenitic belt cooling machine conveyor |
||
Product Description
Home > Products > Hot Products
Products Categories
- Steel Belts
- Steel Belt for Chemical Industry
- Steel Belt for Food Industry
- Steel Belt for Composition Material Industry
- Belt Systems
- Steel Belt Cooling Systems
- Pastillator
- Steel Belt Pastillator
- Strip Cooler
- Flaking Cooler
- Single Belt Flaking Systems
- Pastillator
- Composite Production Line
- Food Processing Conveyor Systems
- Steel Belt Cooling Systems
- Hot Products

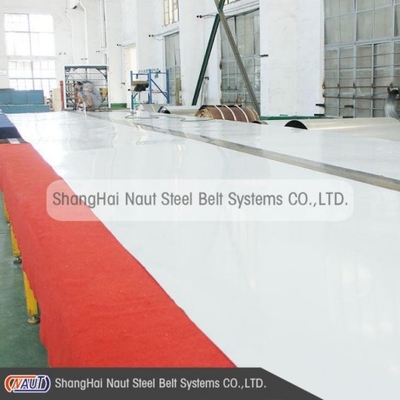

Stainless Steel Belt For Cooling
ASS-1200 is a special strength austenitic stainless steel.It has the characteristics of corrosion resistance, temperature resistance, cleanliness and sanitation.And often in the chemical industry, food industry, medicine, rubber and plastics, electronics, mining energy and other industries....
Send Inquiry
Product Details
ASS-1200 is a special strength austenitic stainless steel.It has the characteristics of corrosion resistance, temperature resistance, cleanliness and sanitation.And often in the chemical industry, food industry, medicine, rubber and plastics, electronics, mining energy and other industries.
Recent common specifications are as follows:
Thickness:0.2mm; 0.3mm; 0.4mm; 0.5mm; 0.6mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm
Width:600mm;1000mm;1200mm;1500mm;1560mm;2030mm
Standard steel belt and non-standard steel belt size:
Application Area:
Optical thin film
Chemical cooling flake
Chemical cooling pellet
Chocolate,cake processing ect
Chemical industry
Food industry
Cooling and curing of molten materials in chemical industry
Naut ASS-1200 Outstanding Characters:
Excellent flatness; High corrosion,hygienic
Long usage time; High mechanical strength
Good straightness and tracking; Different requirements for universal products
Low cost of economic operation and maintenance; Non-pollution
Low operating and maintenance costs; No static; stable operation
|
Stainless steel belt for cooling |
Stainless Steel Cooling Belt |
ASS-1200 high strength austenitic stainless steel belt for cooling |
Steel Belt Chemical Composition:
|
ASS-1200 |
Chemical composition % |
||||||
|
C |
Cr |
Ni |
Si |
Mo |
Others |
||
|
0.08 |
17.80 |
8.0 |
0.6 |
1.40 |
(N.S.P.etc) |
||
|
Other technical parameters |
|||||||
|
Straightness |
≤2mm/10M |
CTE 10-6(20-200℃) |
18 |
||||
|
Flatness |
≤3mm/2M max.H;L |
Elasticity modulus (20℃ N/mm) |
182000 |
||||
|
Side burr |
None,R corner |
Thermal conductivity W/mK(100-200℃) |
16 |
||||
|
Welding coefficient |
0.72 |
Material density |
7.93 g/cm |
||||
Steel belt welding:
Width can 3~6 meter, NAUT ideal TIG/L/M-P,welding technology,it can make the thickness tolerance within 0.02mm,according to different steel belt welding coefficient and after treatment,welding strength can be 80%~97%( compared with raw materials)
Steel belt lengthways deformations
Normally steel belt lengthways deformations can be leveled by special leveling devices to change the whole steel belts’ flatness.
How to bond the v-ropes:
One step: making your surface of belt coarse in the two sides of belt using polishing tools
Two step:Sticking scotch tap on the two sides
Third step: painting the glue into the surface of your belt, then bonding the v-ropes
Forth step: through automatic heating machine
On site if sticking v-ropes with heating board in different sizes
AFTER SERVICE:
