400-1300mm Carbon Steel Conveyor Belt Cookies Flat Flex For Oven
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Width | 400mm To 1300mm | Application | Cookies |
|---|---|---|---|
| High Light | naut 400mm Carbon Steel Conveyor Belt,1300mm Carbon Steel Conveyor Belt naut,cookies flat flex conveyor belt naut |
||
Product Description
Home > Products > Hot Products
Products Categories
- Steel Belts
- Steel Belt for Chemical Industry
- Steel Belt for Food Industry
- Steel Belt for Composition Material Industry
- Belt Systems
- Steel Belt Cooling Systems
- Pastillator
- Steel Belt Pastillator
- Strip Cooler
- Flaking Cooler
- Single Belt Flaking Systems
- Pastillator
- Composite Production Line
- Food Processing Conveyor Systems
- Steel Belt Cooling Systems
- Hot Products

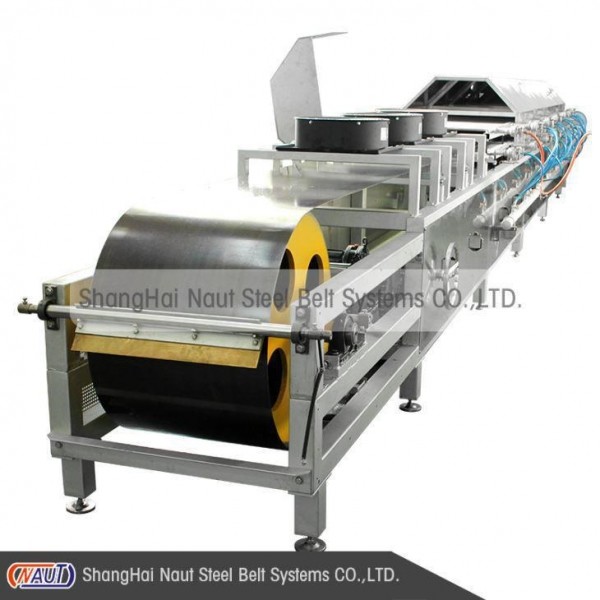

Conveyor Carbon Belt For Oven
The steel belt of this specification is made by special heat treatment process, it can meet the requirements of transmission, baking and eating at high temperature,bake oven belts’ width range can be from 400mm to 1300mm.At the same time,it has other characteristics,such as:high surface flatness...
Send Inquiry
Product Details
The steel belt of this specification is made by special heat treatment process, it can meet the requirements of transmission, baking and eating at high temperature,bake oven belts’ width range can be from 400mm to 1300mm.At the same time,it has other characteristics,such as:high surface flatness of steel strip,excellent thermal conductivity and heat exchange rate,have recycling value,excellent wear resistance,etc.
So they are often used for baking products,such as bread,biscuits,cakes,etc.
Recent common specifications are as follows:
Thickness:0.5mm;0.8mm;1.0mm;1.2mm;1.4mm;
Width:400mm;1000mm;1200mm;1550mm;
Standard steel belt and non-standard steel belt size:
Application Area:
cookies
biscuits
Cakes
Pancakes making
The food industry delivers chocolate
High temperature drying in the energy industry
Continuous high temperature furnace
Steel Belt Outstanding Characters:
Excellent flatness and straightness
Long usage time
Work environment temperature can be over 400℃
High flatness
Excellent thermal conductivity property
Excellent heat exchange rate
|
Conveyor carbon belt for oven |
Carbon steel conveyor belt for oven |
CS-1100 carbon steel conveyor belt for oven |
Steel Belt Chemical Composition:
|
CS-1100 |
Chemical composition % |
||||||
|
C |
Cr |
Ni |
Si |
Mn |
Others |
||
|
0.51 |
0.30 |
-- |
0.21 |
0.99 |
(N.S.P.etc) |
||
|
Other technical parameters |
|||||||
|
Straightness |
≤2mm/10M |
CTE 10-6(20-200℃) |
11 |
||||
|
Flatness |
≤3mm/2M max.H;L |
Elasticity modulus (20℃ N/mm) |
201000 |
||||
|
Side burr |
None,R corner |
Thermal conductivity W/mK(100-200℃) |
40 |
||||
|
Welding coefficient |
0.70 |
Material density |
7.7 g/cm |
||||
Steel belt welding:
Width can 3~6 meter, NAUT ideal TIG/L/M-P,welding technology,it can make the thickness tolerance within 0.02mm,according to different steel belt welding coefficient and after treatment,welding strength can be 80%~97%( compared with raw materials)
Steel belt lengthways deformations
Normally steel belt lengthways deformations can be leveled by special leveling devices to change the whole steel belts’ flatness.
AFTER SERVICE
ShangHai Naut Steel Belt Systems Co.,Ltd., has more than 10years experiences in manufacturing steel belts, in order to provide good service to customers, NAUT expanded after service team and add welding kit equipment to meet different industries after service requirement, NAUT regularly train staffs to improve their technology in maintenance, repair to prevent incident happening and enhance pro
